10/14x85 1500VDC PV Fuse Holder

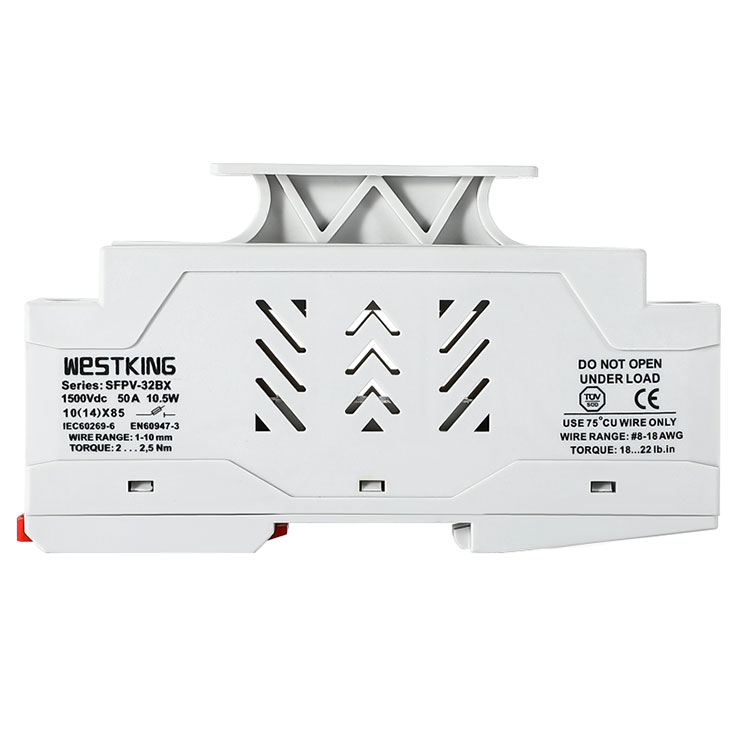

The SFPV-32BX photovoltaic fuse base is compatible with both 1500VDC 10X85MM and 10/14×85MM photovoltaic fuses, with a maximum rated current of up to 50A. The development of this PV fuse holder is based on in-depth communication and testing verification with numerous photovoltaic base station users by WESTKING.The SFPV-32B 1500VDC fuse holder features an advanced heat dissipation structure, with channels for hot air flow between poles, effectively reducing temperature superposition generated by the fuse. The internal space is designed to allow the fuse to hang freely, preventing it from touching the holder's plastic shell and reducing the risk of burning and carbonizing the plastic.
Send Inquiry
Product Description
To facilitate replacing fuses, the holder is designed with a drawer-style handle that can be easily pulled out, making the fuse replacement process more convenient and safe. In summary, the SFPV-32BX photovoltaic fuse base demonstrates excellent performance and reliability in enhancing power station operation efficiency and ensuring safety. It is a trusted choice for photovoltaic installations.
Technical data
| •Rated voltage: | 1500Vdc |
| •Rated currents: | 50A |
| •Degree of protection: | IP20 |
| •Product Size: | 10/14x85mm gPV fuses link |
| •Rated breaking capacity: | 50kA |
| •Storage temperature: | -40°C ... 90°C |
| •Operating temperature : | -40°C ... 85°C |
| •Power dissipation of fuse-holder: | 0.37W |
| •Rated insulation voltage: | 6kV |
Standards
IEC/EN 60269-1
IEC/EN 60269-2
UL4248-1 Fuse holders
UL4248-19 Photovoltaic fuse holders
UL486E Wiring terminals
CSA C22.2 Nº 4248-1 Fuse holder assemblies
CSA 22.2 Nº 65 Wire connectors
KEY FEATURES/ADVANTAGES
Compact design saves space
TH35 DIN rail installation for easy integration
Drawer-style plug-and-play design, safe and convenient for fuse replacement
Optional visual fuse indicator
Made from PBT plastic material
Flame-retardant material, V0 rating
APPLICATIONS
Photovoltaic applications up to 1500VDC
Protection at the PV string/array level
Inverter applications
Combiner box operation
Certifications
is09001 iatf16949
TUV CE
Origin
China
ELECTRICAL CHARACTERISTICS
| type | led indicator | Net weigh | packing |
| SFPV-32B-1P | NO | 117g | 6pcs/box |
| SFPV-32BX-1P | yes | 120g | 6pcs/box |
Dimensions (mm)
Compatible FUSE link
Model and significance
WESTKING Photovoltaic Fuse and holder
Application Diagram
